Machine Introduction

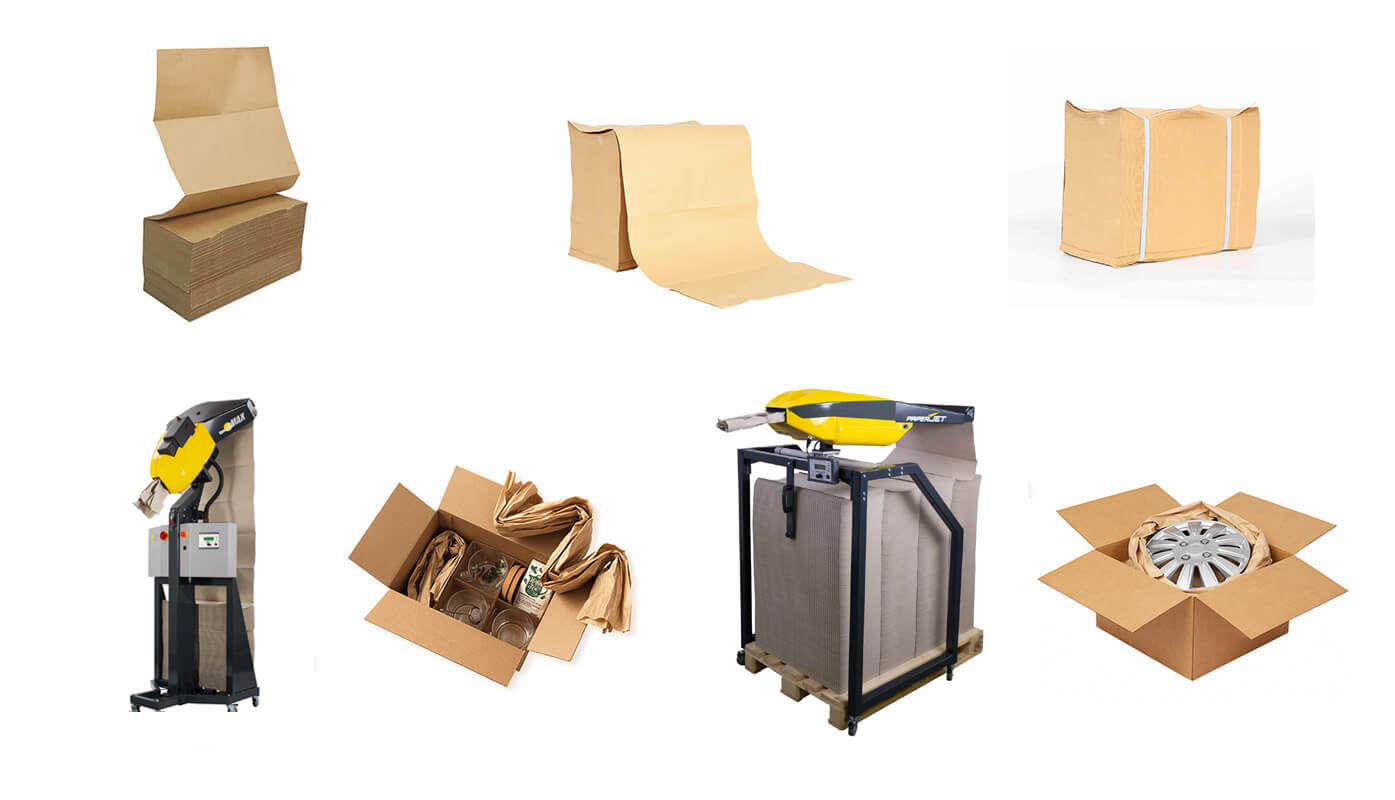

The fanfold paper folding and perforating machine processes fan-folded paper bundles for use in paper void-fill systems. These compact, fan-folded packs are easy to handle, store, and load into machines, minimizing downtime. Compatible with smart void-fill machines such as Ranpak's FillPak Trident, FillPak SL, FillPak TTC, FillPak TT, and FillPak M, Storopack's PAPERplus SHOOTER, and Sealed Air's FasFil Jet, FasFil Jr, FasFil 1500, FasFil M, FasFil Mini, and FasFil Jr. Ideal for both side and top void-filling applications.
Product Specification
| 1 | Max. unwinding Width | 780mm |
| 2 | Max. unwinding Diameter | 1200mm |
| 3 | Maximum roll weight | 600Kgs |
| 4 | Runing Speed | 5-300m/min |
| 5 | Fold size | 8-15 inches |
| 6 | Machine weight | 4500kgs |
| 7 | Machine size | 5500mm*1650mm*1700mm |
| 8 | Power supply | 380V 3Phase 5 wires |
| 9 | Main motor | 22KW |
| 10 | Paper loading system | Automatic hydraulic loading |
| 11 | Unwinding shaft | 3 inch inflatable air shaft |
| 12 | Switch | Siemens |
| 13 | Touch screen | Mikom |
| 1 | PLC | Mikom |
Our factory
1
Precise sales, think what you think
We analyze global paper bag production trends and sustainability insights to design versatile models that meet diverse customer needs with flexibility.
2
Excellent R& D management
Our skilled R&D team and expert management in the packaging machinery industry ensure every product meets customer needs and delivers outstanding value.
3
After-sale guarantee
We deliver comprehensive, prompt after-sales support, ensuring customers receive exceptional service every step of the way.
Certifications
