Machine Introduction

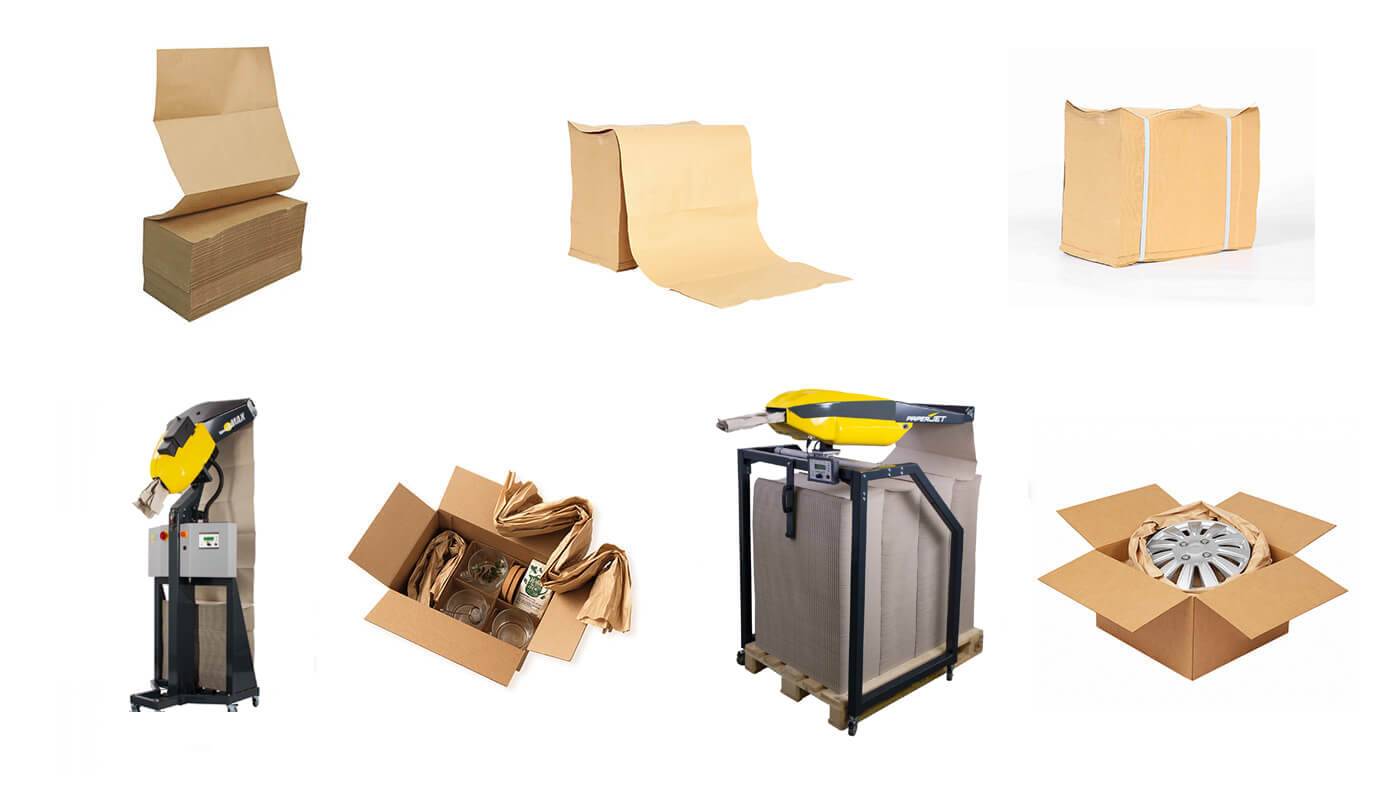

This kraft paper folding machine is designed to produce folded kraft paper rolls, often referred to as a perforating and folding kraft paper machine. Kraft paper, made from wood pulp through the kraft process, is known for its strength, durability, and shock-absorbing properties. It is widely used in industries like packaging and express logistics. The machine can be paired with equipment such as paper cushion machines to create protective, shock-absorbing packaging materials. It automates the punching, cutting, and folding of kraft paper, neatly stacking the finished sheets for easy collection.
Product Specification
| 1 | Max. unwinding Width | 780mm |
| 2 | Max. unwinding Diameter | 1200mm |
| 3 | Maximum roll weight | 600Kgs |
| 4 | Runing Speed | 5-300m/min |
| 5 | Fold size | 8-15 inches |
| 6 | Machine weight | 4500kgs |
| 7 | Machine size | 5500mm*1650mm*1700mm |
| 8 | Power supply | 380V 3Phase 5 wires |
| 9 | Main motor | 22KW |
| 10 | Paper loading system | Automatic hydraulic loading |
| 11 | Unwinding shaft | 3 inch inflatable air shaft |
| 12 | Switch | Siemens |
| 13 | Touch screen | Mikom |
| 1 | PLC | Mikom |
