Machine Introduction

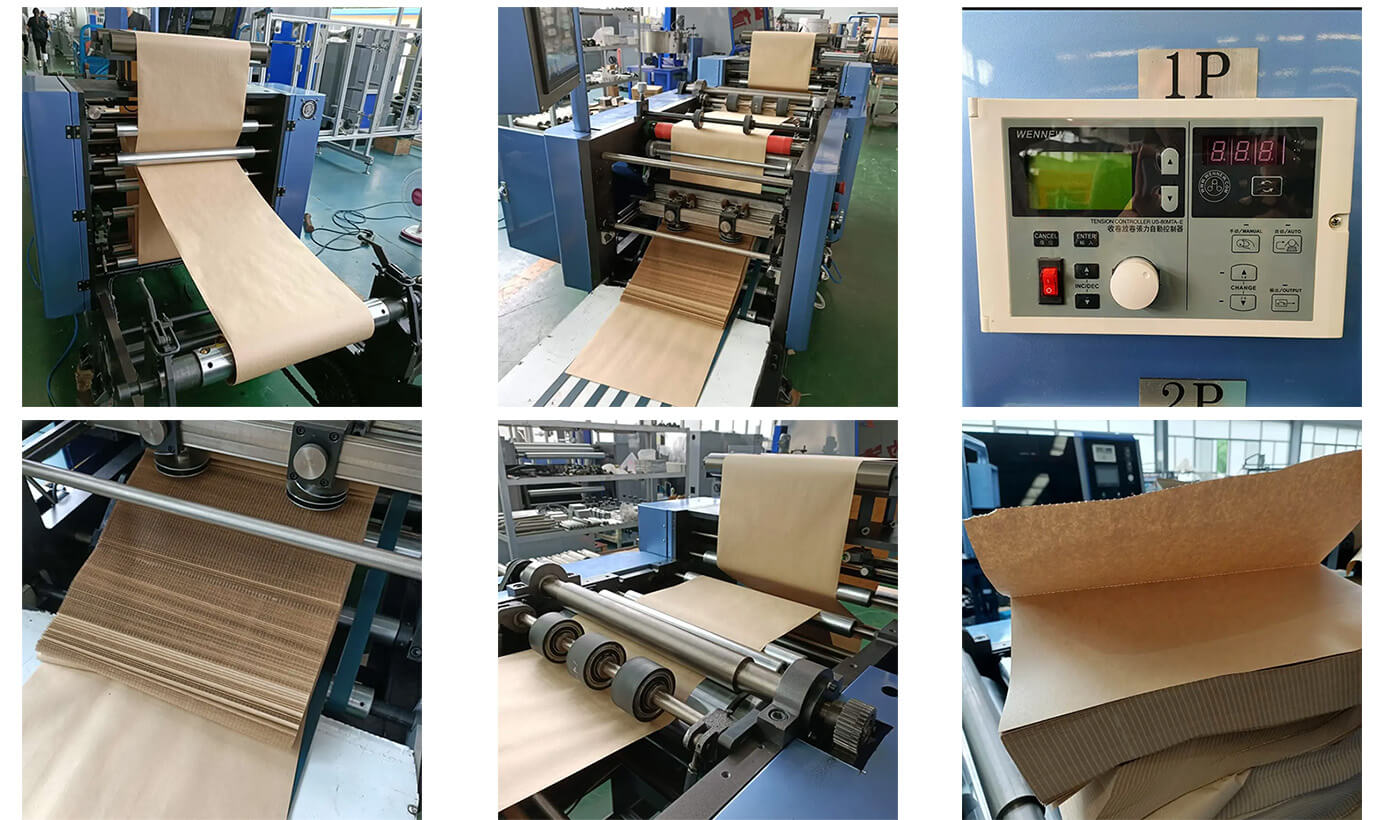

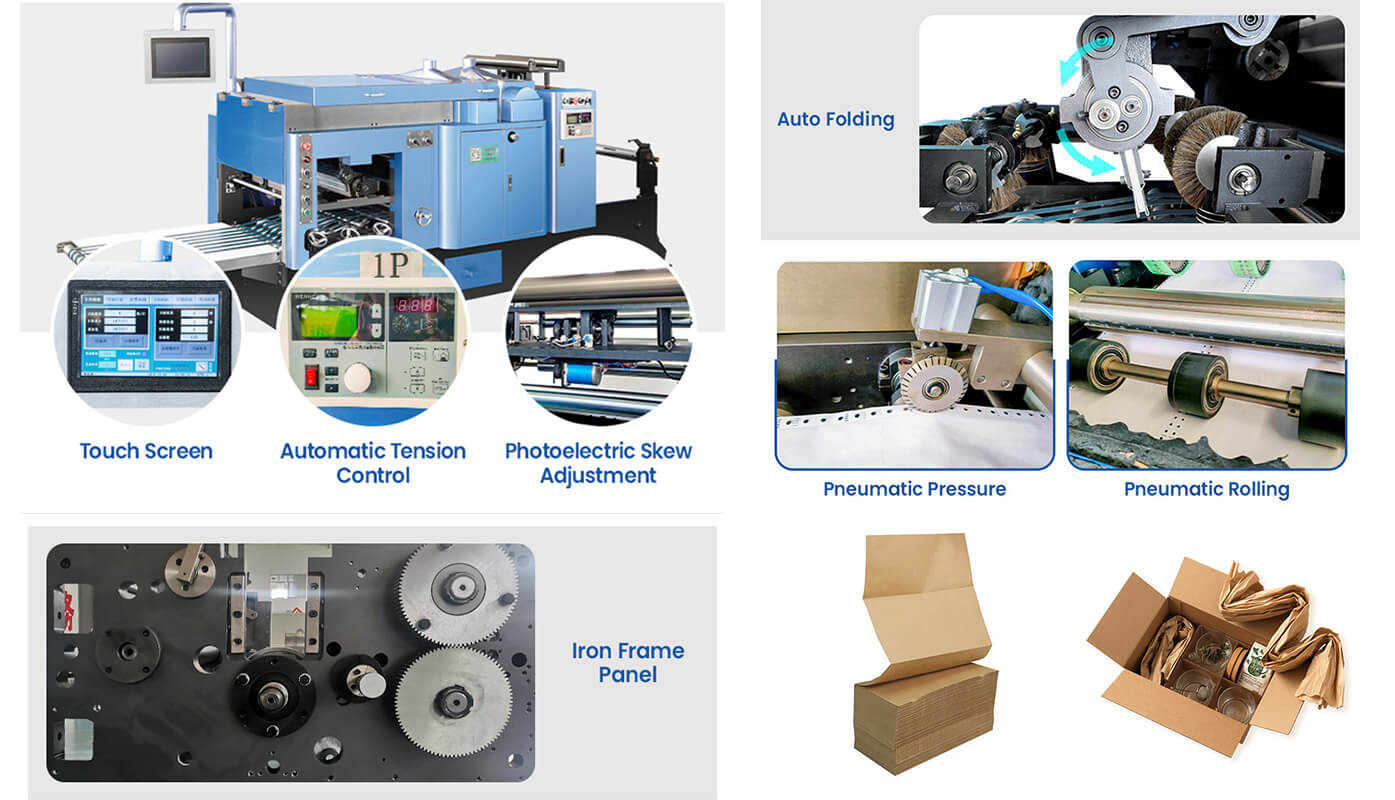

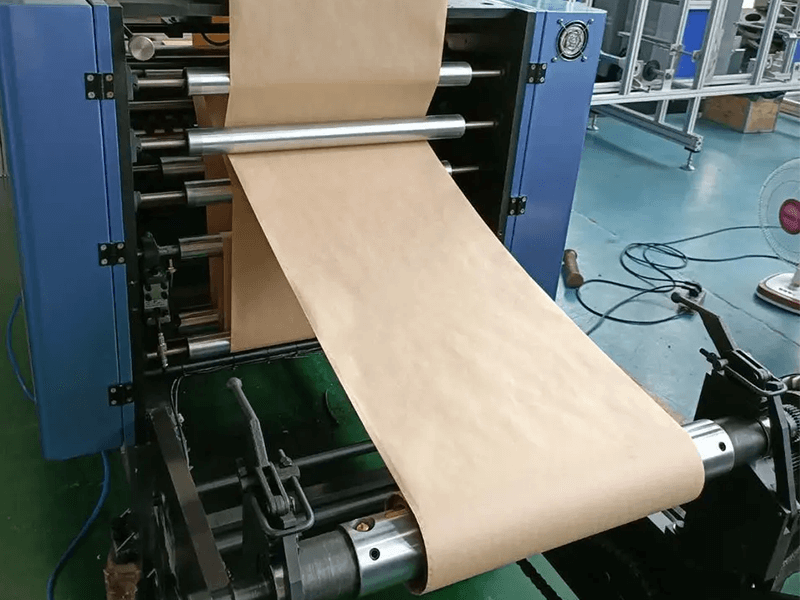

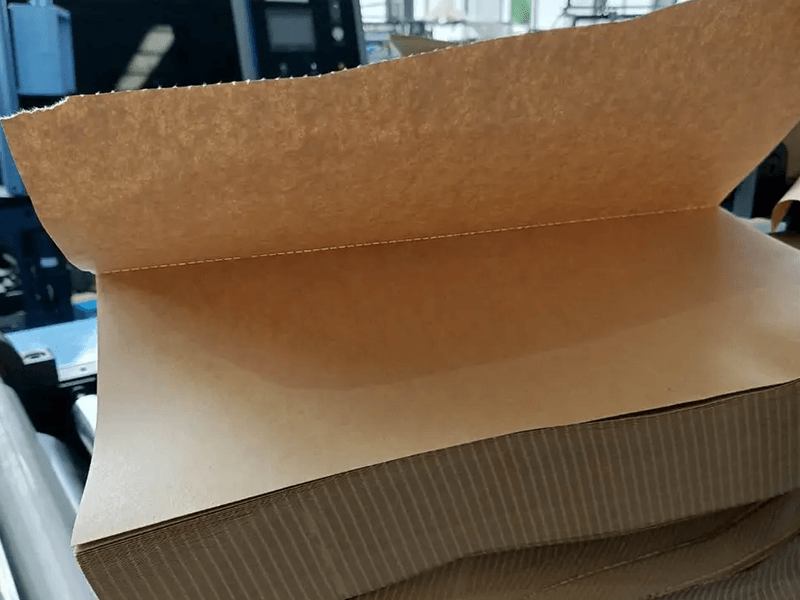

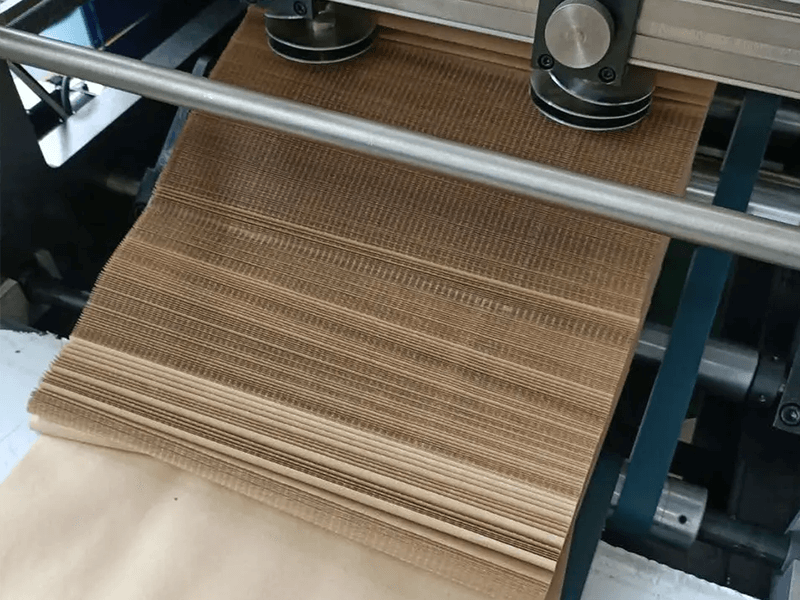

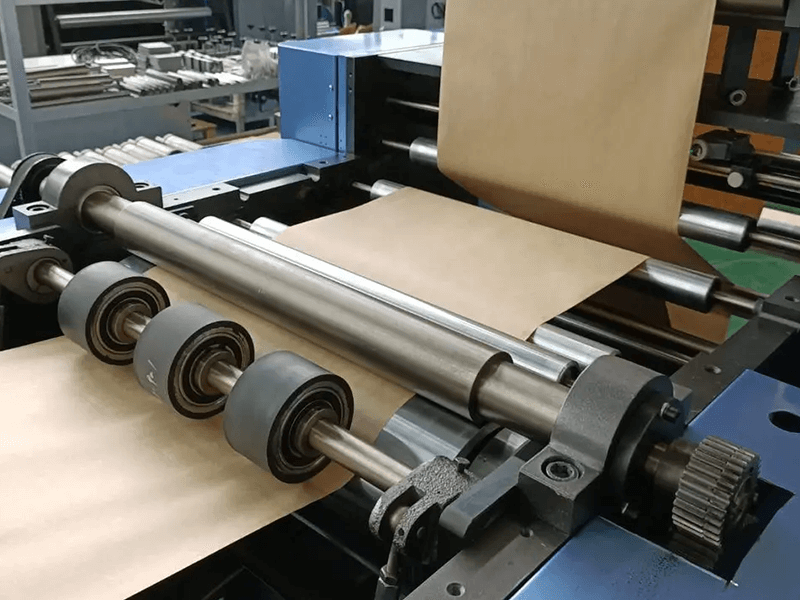

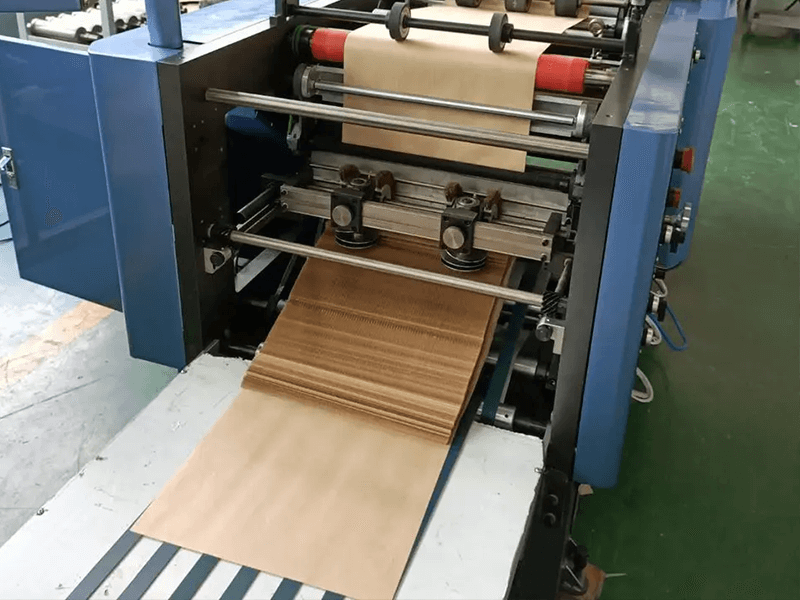

This kraft paper folding machine is primarily used to produce folded kraft paper rolls, also known as a perforating and folding kraft paper machine. Made from wood pulp through the kraft process, kraft paper is strong, durable, and provides excellent shock absorption. It is widely used in packaging, express logistics, and various other industries. The machine can be integrated with packaging systems like paper cushion machines to create protective cushioning materials. It automatically punches, cuts, and folds the kraft paper, stacking the finished sheets neatly for easy collection.
Product Specification
| 1 | Max. unwinding Width | 500mm |
| 2 | Max. unwinding Diameter | 1000mm |
| 3 | Paper Weight | 40-150g/Square Meter |
| 4 | Runing Speed | 5-200m/min |
| 5 | Lateral Folding Line | 11 Inch (2 folds or 3 folds, others are optional) |
| 6 | Machine weight | 1800kgs |
| 7 | Machine size | 3700mm*1200mm*1700mm |
| 8 | Power supply | 380V 3Phase 5 wires |
| 9 | Main motor | 22KW |
| 10 | Paper loading system | Automatic hydraulic loading |
| 11 | Unwinding shaft | 3 inch inflatable air shaft |
| 12 | Switch | Siemens |
| 13 | Touch screen | Mikom |
| 1 | PLC | Mikom |
